Jared said:
Hi guys, I know this information isn't new as it was already posted by Acelabs, but I'd like to have a sticky thread about this for quick reference. Here's a list of SATA compatible boards for WD My Passports, My Elements, etc. that have a native USB port:

USB -> SATA
701605 - 701499
701615 - 701499
701635 - 701572
701650 - 701499
701675 - 701672, 701609, or 771672
771737 - 701692 or 771692
771754 - 701692 or 771692
771761 - 771692
771801 - 771823
771814 - 771820
771859 - 771852
771939 - 771959
771949 - 771959, 771931 or 771939 (771960 works electronically, but doesn't fit physically)
771961 - 771960, , 771933, 771939, or 771959
771962 - 771931 or 771959 (771960 works electronically, but doesn't fit physically)
771817 - 771820
800038 - 800025
800041 - 800022-000 (for 3Tb) 800022-002 (for 4Tb)
800069 - 800066 (confirmed) or possibly 800052 (??? unconfirmed ???)
800067 - 800065 (Requires Unlocked PCB)
810003 - 800065 (Unlocked)

Please post updates below and I'll update the list. Thanks!

Revised: April 27th 2022
Click to expand...

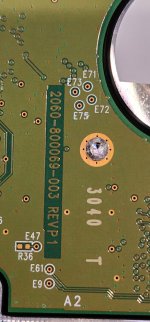

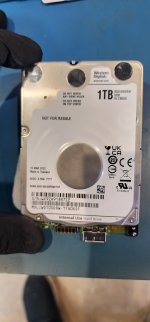

hey guys whats the best way of figuring out which sata revision you need for compatabilities sake? i need to convert a 800069-003 Revp1 revision to 800066. for the 800066 there seems to be two different pcbs available on donor drive site . one being 2060-800066-004 or -006 . any tips would be great. also these need to be rom swapped too i believe?

cheers

george


Attachments

  • 20221101_172547.jpg
    730.8 KB · Views: 13
  • 20221101_172558.jpg
    792.8 KB · Views: 12
DigitalVeriKurtarma

DigitalVeriKurtarma

Member
gazishahin said:
Hi, I have also a case with same pcb. Did you find any solution? Please let us know.
Click to expand...
xinguangkeji said:
810030(SATA)=810035(USB3.0)=810067(USB3.0) =810033 (TYPC) 4TB 5TB
800022(SATA)=800041(USB3.0)= 810012 (TYPC) 3T 4TB 5TB
800065(SATA)=800067(USB3.0)= 810003 (TYPC) 2TB
800066(SATA)=800069(USB3.0)= 800086 (TYPC) 1TB

View attachment 1767
Click to expand...

Yes I have find A product. Bought . Used. working good
This product just allow to access SA User Data ecrypted.

Steps
Read patient ROM ( I am readin with external reader)
Write patient ROM to this product
Mount to patient drive.
Acess Servis area
User area data encrypted

I will open a topic about my experience For this drive and, I am guessing its about All SED drive

do not use another USB pcb
DO NOT TRY ROM SWAP TO DONOR PCB
I guess encription algoritm changing and User Area data decrypting with wrong key. Mean, loosing data.

I am using MRT
Do not try SMART function etc.

Back up copy0 , Copy1 manually
Back up All modules, And 183,189,190 manually.
189 190 doesnt have checksum.

Thic C type PCB very sensitive. Can bending and brekaking very fast

DigitalVeriKurtarma

DigitalVeriKurtarma

Member
Jared said:
Hi guys, I know this information isn't new as it was already posted by Acelabs, but I'd like to have a sticky thread about this for quick reference. Here's a list of SATA compatible boards for WD My Passports, My Elements, etc. that have a native USB port:

USB -> SATA
701605 - 701499
701615 - 701499
701635 - 701572
701650 - 701499
701675 - 701672, 701609, or 771672
771737 - 701692 or 771692
771754 - 701692 or 771692
771761 - 771692
771801 - 771823
771814 - 771820
771859 - 771852
771939 - 771959
771949 - 771959, 771931 or 771939 (771960 works electronically, but doesn't fit physically)
771961 - 771960, , 771933, 771939, or 771959
771962 - 771931 or 771959 (771960 works electronically, but doesn't fit physically)
771817 - 771820
800038 - 800025
800041 - 800022-000 (for 3Tb) 800022-002 (for 4Tb)
800069 - 800066 (confirmed) or possibly 800052 (??? unconfirmed ???)
800067 - 800065 (Requires Unlocked PCB)
810003 - 800065 (Unlocked)

Please post updates below and I'll update the list. Thanks!

Revised: April 27th 2022
Click to expand...


810035 need special unlocked PCB
you can update

FAsTec

FAsTec

Member
About Board 800022 (SATAs , three versions) which corresponds to the 800041(USB3.0) and 810012 (TYPC) three versions or even more

you must simply check the heads/spindle driver version

you'll see B20 B22 B23 (since today , never seen version B21)

just match the driver

wrong match , no spin
